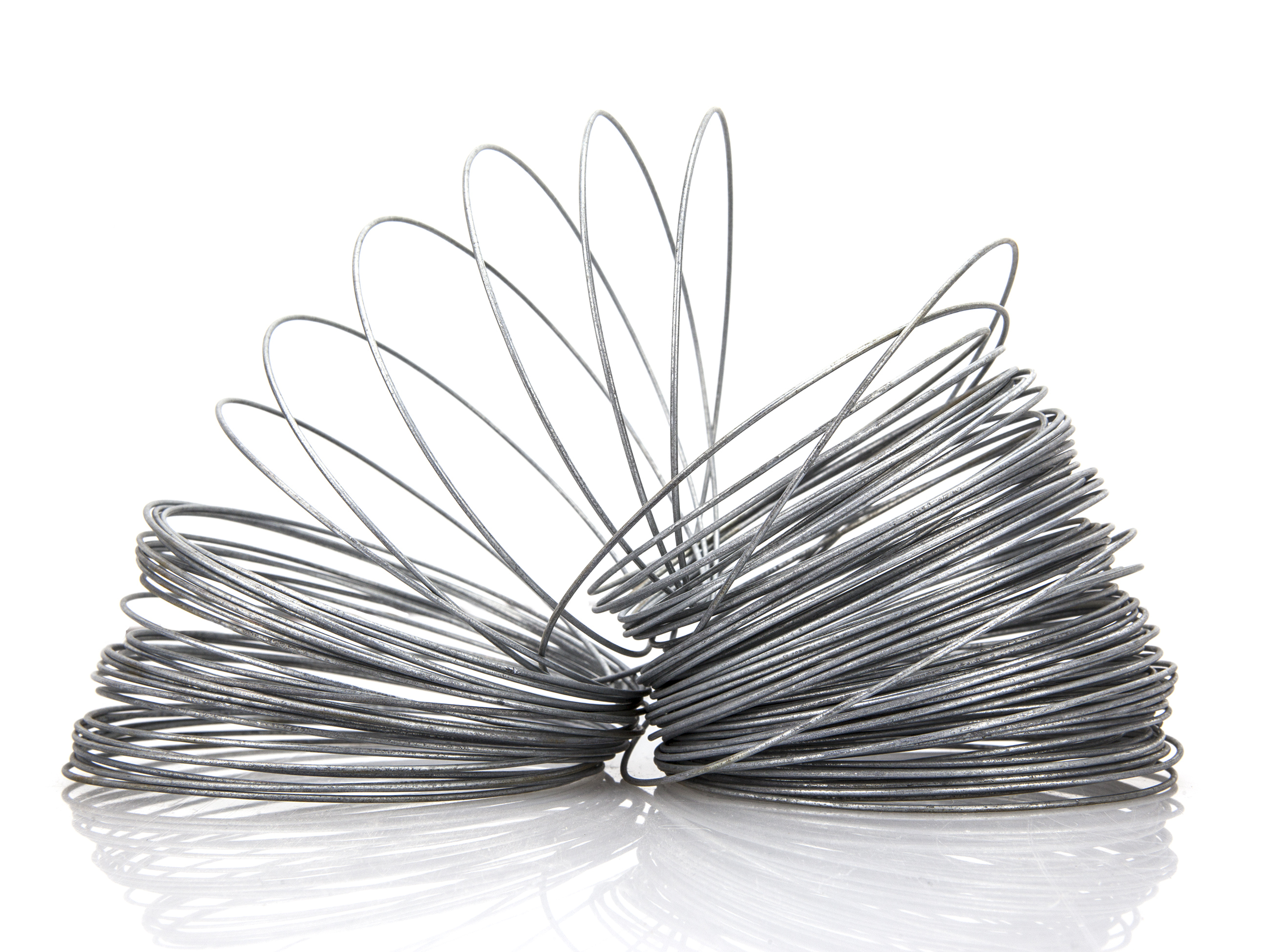

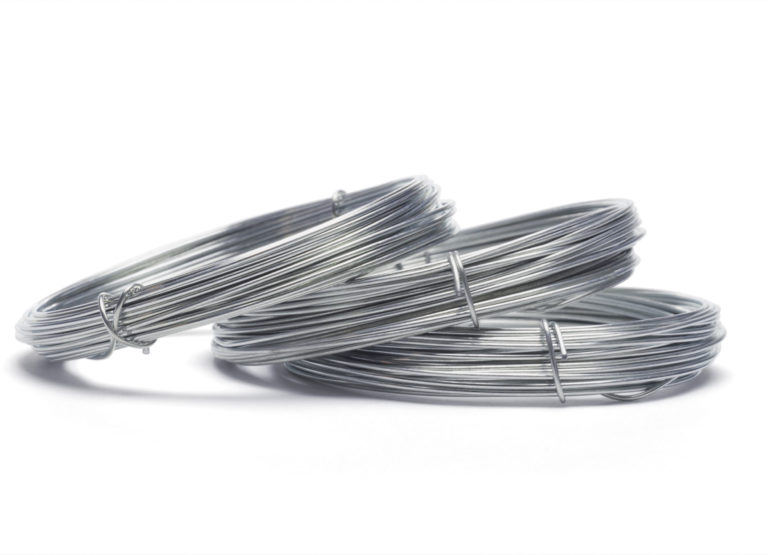

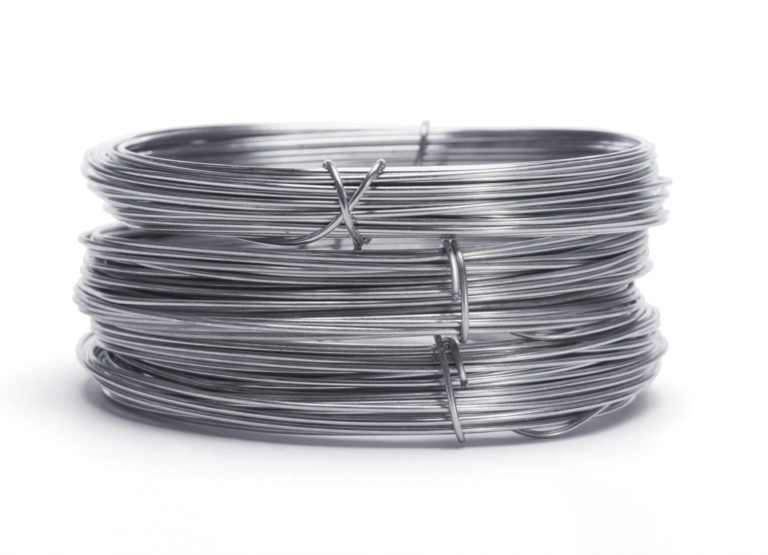

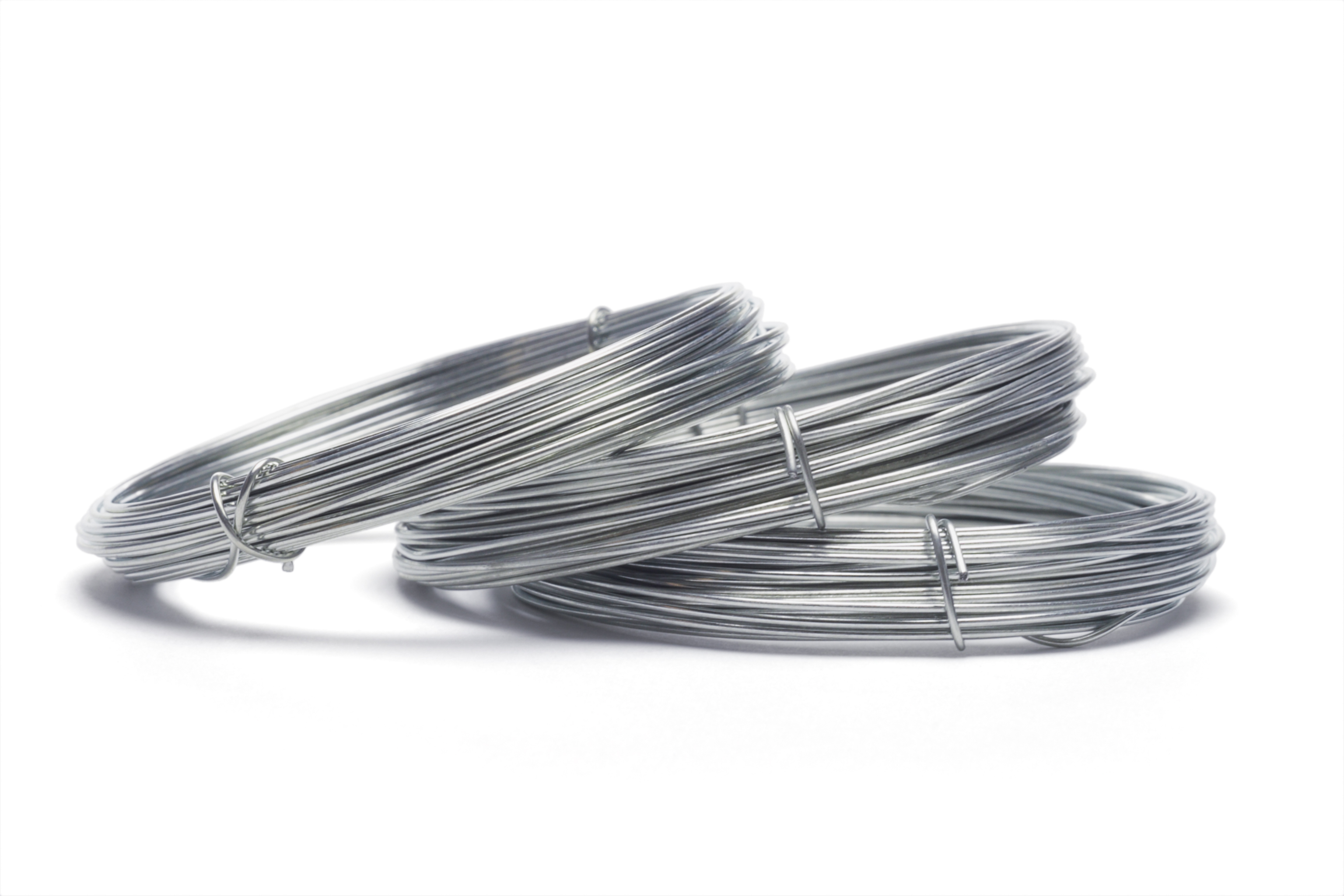

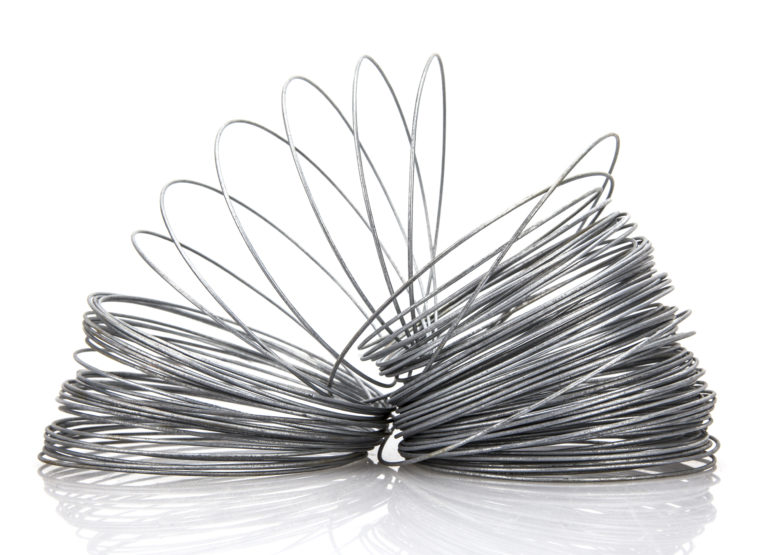

Zinc wire SHG 99,995
Cinkarna Zinc Wire is produced from Special High Grade Zinc with purity 99,995% according to technology of Continuus-Properzi. Zinc wire is used for anti-corrosion protection of steel structures – making of zinc coatings by metal spraying. This wire is also used in electronic industry. The quality of our zinc wire complies with following standards: DIN EN ISO 14919 “Thermal spraying. Wires, rods and cords for flame and arc spraying. Classification. Technical supply conditions.” and EN 1179 ,,Specification for zinc and zinc alloys, plimary zinc.”
| Chemical composition | |
|---|---|
| Zn | 99.995 % |
| Pb | max. 0,005 % |
| Cd | max. 0,003 % |
| Cd + Pb | max. 0,006 % |
| Sn | max. 0,001 % |
| Fe | max. 0,003 % |
| Cu | max. 0,002 % |
| Acceptable admixtures | max. 0,010 % |
| Mechanical properties | |
|---|---|
| Density | 7.2 kg / dm3 |
| Tensile strength | 100 – 120 N / mm2 |
| Elongation | 40 – 70 % |
| Hardness | 27 – 35 HV |
| Standard diameters and tolerances | |
|---|---|
| Zn wire diameters [mm] | 1,60 / 2,00 / 2,50 / 3,00 / 3,18 / 4,00 / 4,76 |
| - tolerance for diameter below 3,00 mm | + 0,00 mm / - 0,060 mm |
| - tolerance for diameter above 3,0 mm | + 0,00 mm / - 0,075 mm |
| Packing |
|---|
| - coils 20 kg |
| - spools 25 kg |
| - barrels 250 kg |
